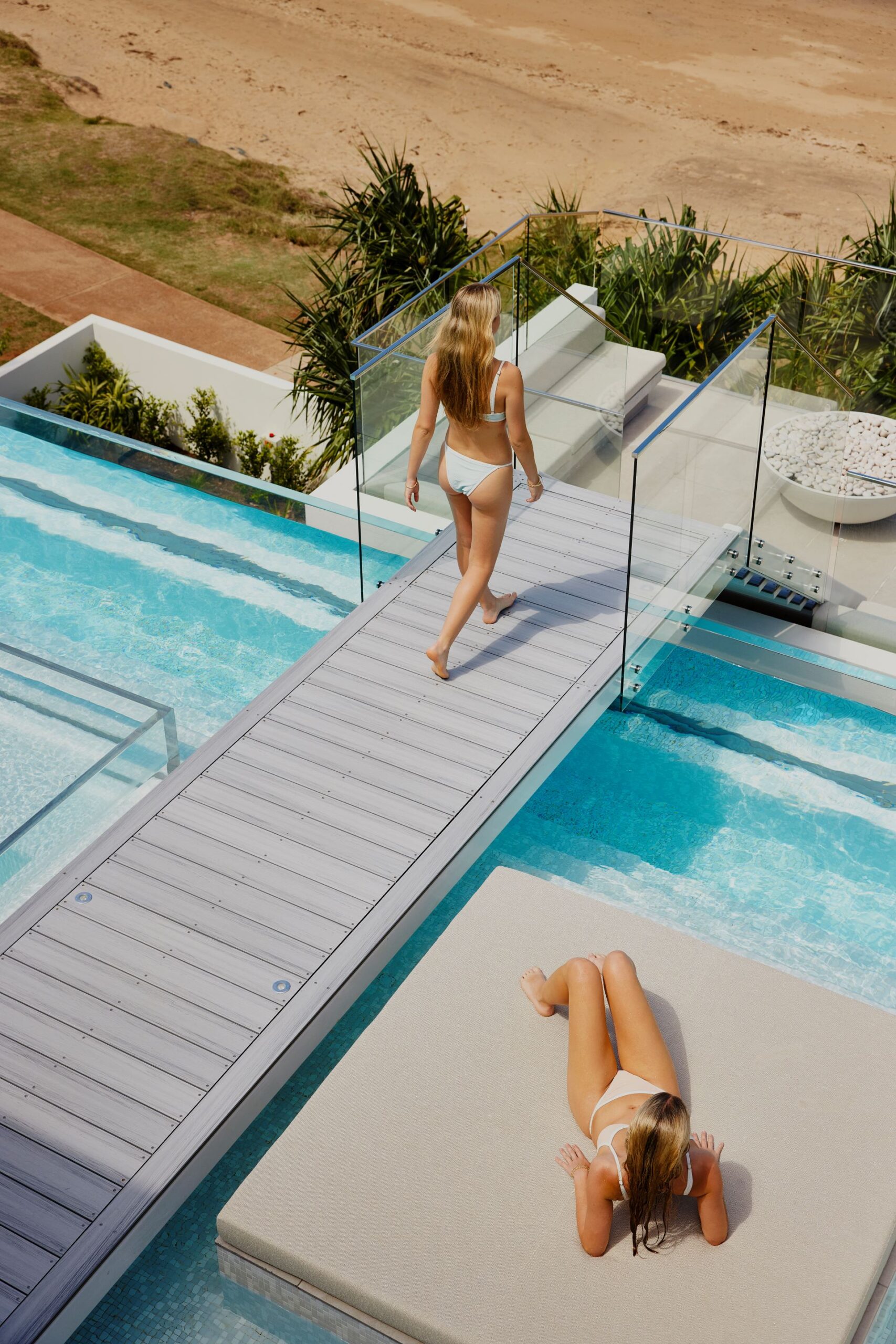

A frameless pool fence provides a dramatic enhancement to your pool and outdoor entertaining environment. Engineered and designed to withstand the elements, the Clearly Glass pool fence system is made from 12mm Australian toughened ‘Grade A’ Safety Glass and is custom made to suit your needs.
Our mini glass clamps are made from a choice of high quality stainless steel and electro polished to minimise traditional environmental staining or powder coated low maintenance aluminium.
Glass feature options are available to help you create your own special effect.
The glass is 12mm Australian toughened grade A Safety glass in clear, textured or tinted options.
Hinges are available in 3 closing methods
- Spring tensioned stainless steel adjustable side mounted gate hinges in 316 marine grade stainless steel.
- Side mount Hydraulic controlled Biloba hinges, a unique, stylish and mechanically practical side mounted hinge manufactured from high quality components. Italian designed and made with an enviable stamp of quality second to none. Fully adjustable speed control makes it safe protection to your pool environment.
- In ground hydraulic control is a concealed in ground hydraulic floor spring, gate closing system, fully speed adjustable and comes with top and bottom gate patch fittings for total safe, effective operation.
The Latch mechanism is Magnetic ‘finger pull’ in stainless steel or satin chrome on brass
Clearly Glass use various methods of fixing.
Our very popular min-clamp is in stainless steel in Hi polish easy clean finish with either in ground or surface mount functions.
There is also the stunning side fix methods in either a stainless steel side mount clamp or stainless stand off anchors.
Typical installations:
In pre-cast concrete slab
Concrete Channel Installation – the design required for new situations where the fence is to be installed into a prepared structural paving slab. The main contractor should ensure that the footing is designed to suit each independent situation.
Surface mount mini clamps
The mini post is for uses where clearance is required under the glass for drainage or cleaning. May be adapted for both timber and new or existing paving.
Side fixing stand off anchor or clamp
Stand off pin is suitable for fixing to the edge of pool shells, stairwells or balconies where the space is limited or top fixing is not possible. Utilised when a complete frameless look is desired and the impactive visual of glass growing out of the ground.
Preparation required: All fencing and balustrade installations rely on independently engineered sound structural support to be provided by the main contractor. The dimensions and details shown above may vary depending on construction elements and should be used a s a guide only.
